Overview

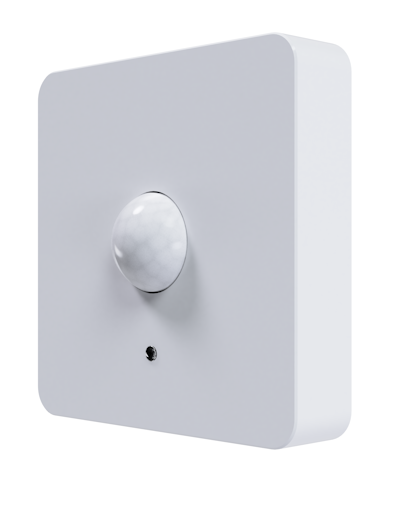

Cascoda's KNX IoT Presence Sensor provides presence/motion sensing as well as luminance measurements. It is battery powered and therefore can be fitted in the most convenient location for presence/motion and luminance measurements. This product, in combination with a Building Energy Management System (BEMS), can be used to help fulfil the energy-efficiency provisions of the EU Energy Performance of Buildings Directive (EPBD).
Features
Measures the following environmental variables:
- Presence (PIR)
- Luminance (in Lux)
Other features:
- Wireless Thread, sleepy end device, using Chili2S with Industry leading receive sensitivity
- Battery charge status indicator for any chemistry
- Configurable with ETS6.3 or later
Specification
- Wall or panel mount options
- Dimensions 78 x 78 x 26mm (with wall mount)
- Battery powered (3 AA) - see note
- 5-year battery life on Alkaline (LR6)
- 6-year battery life on Lithium (FR6)
Note: The chemical life of the battery is likely to determine the replacement cycle.
