Overview

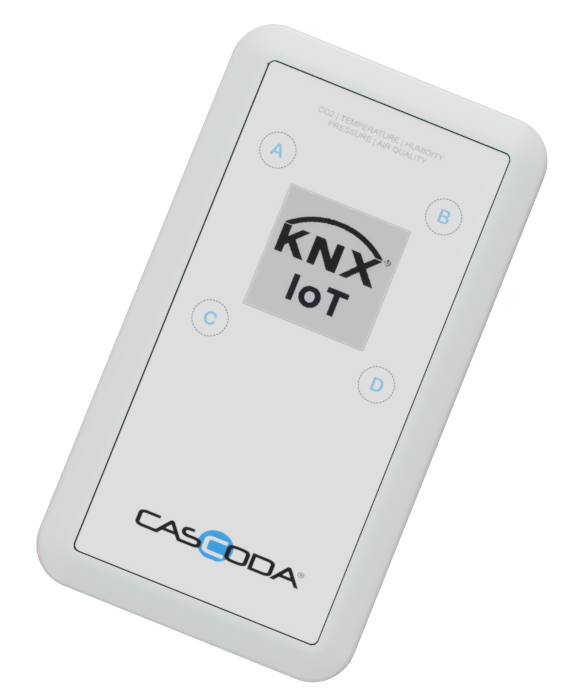

Cascoda's KNX IoT Environment Sensor provides environment measurements compliant to the Indoor Environmental Quality (IEQ) provisions of the EU Energy Performance of Buildings Directive (EPBD). It is battery powered and includes a high-resolution E-Paper display and GUI users, installers, configuration settings & QR Code, and to show current environment values.

Features

Measures the following environmental variables:

  • Temperature
  • Relative Humidity
  • Atmospheric Pressure
  • Carbon Dioxide (CO2)
  • Volatile Organic Compound (VOC) Index

Other features:

  • Wireless Thread, sleepy end device, using Chili2S with Industry leading receive sensitivity
  • Immediate wake on button press
  • Battery charge status indicator for any chemistry
  • 10 minute measurement cycle (configurable with ETS)
  • Menu options for showing overview, Temperature, Relative humidity, Atmospheric Pressure, Carbon Dioxide (CO2) and Air Quality Index
  • Language options for English, French, German, Italian and Spanish
  • Configurable with ETS6

Specification

  • High-resolution E-Paper display
  • Wall or panel mount options
  • Dimensions 135 x 75 x 23mm
  • Battery powered (3 AA) - see note
    • 5-year battery life on Alkaline (LR6)
    • 6-year battery life on Lithium (FR6)

Note: The chemical life of the battery is likely to determine the replacement cycle.
